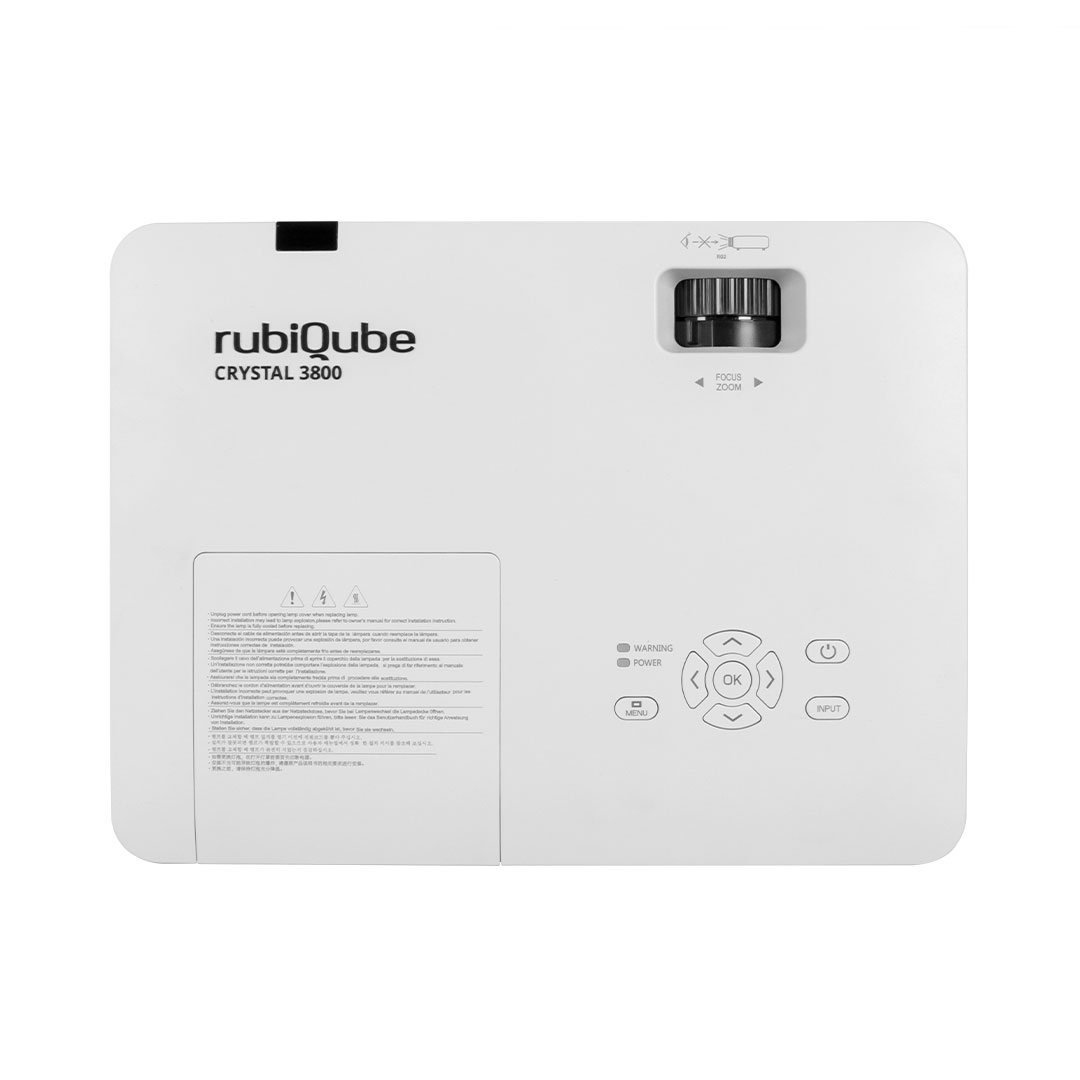

rubiQube Crystal 3800 Projector
3300 Lumens
The rubiQube Crystal 3800 is a seamlessly designed projector which is ideal for a variety of uses including presentations, decorative/functional projections, and home entertainment. It hosts an array of useful features which make it both convenient to operate and suitable for its varied uses:
Multi-scan system: Scanning technology which searches for and accepts almost all computer output signals quickly.
Digital zoom: A very useful function for presentations which allows you to zone in on crucial information or data.
Brightness control: Enables the user to adjust the brightness of the lamp to ensure that the image is visible no matter the lighting conditions of the surrounding environment.
Customisable logos: Enables the user to set their own screen logo for their business or brand.
Languages: A total of 26 languages are available to choose from the menu display.
Maintenance: Lamp and filter maintenance functions.
Security: A function which enables the user to create a pin code lock for the control panel and the remote control, preventing misuse of the projector.
Auto function: Enables an automatic input search as well as automatic PC adjustment and Keystone adjustment to ensure a perfectly rectangular image at all times.
Colour adjustment: Allows the projector to get as close as possible to the correct colour on non-white walls.
Power management: This function is enabled to reduce power consumption which in-turn increases the life of the lamp.
Closed captions: This function allows for operational information to be displayed in the projection.
| Dimensions (W×H×D): 345x261x100mm |
| Net Weight: 3.06Kg |
| Adjustable foot: 10” |
| LCD resolution |
| LCD system: 0.63/0.59" TFT, active matrix |
| LCD resolution: 1024x768/1280x800 |
| Compatible signals |
| Colour standard: PAL, SECAM, NTSC, NTSC4.43, PAL-M and PAL-N, PAL-60 |
| HDTV signal: 480i, 480p, 576i, 576p, 720p, 1080i and 1080p |
| Scanning frequency: Horizontal frequency: 15 kHz–100 kHz; Vertical frequency: 48–85 Hz |
| Optical elements |
| Image size (diagonal lines): 30"–300", adjustable |
| Projection distance: XGA:0.887m–9.077m (Frame.Max) 1.069m–10.899m (Frame.Min) |
| Lens (Standard Lens): XGA: F=2.1~2.25, f=19.109~22.936mm Manual zooming and focusing; Zoom times: 1.2 |
| Lamp power: 225W/150W (ECO. mode) |
| Brightness: 3300 lumens |
| Terminal |
| CPMPUTER IN: Mini D-sub 15pin x1 |
| HDMI1 terminal: HDMI A type 19 pin |
| SERVICE terminal: USB connector (B type x1) |
| RS-232 terminal: D-sub 9 pin x1 |
| VIDEO terminal: RCA connector * 1 |
| Power |
| Voltage and power consumption: AC 100–240 V (Max3.6A), 50/60 Hz |
| Fuse: 6.3A/250V |
| Internal speaker |
| Operating Environment |
| Operating temperature: 0°C ~40°C 35~ ECO) |
| Storage Temperature -20°C ~60°C |

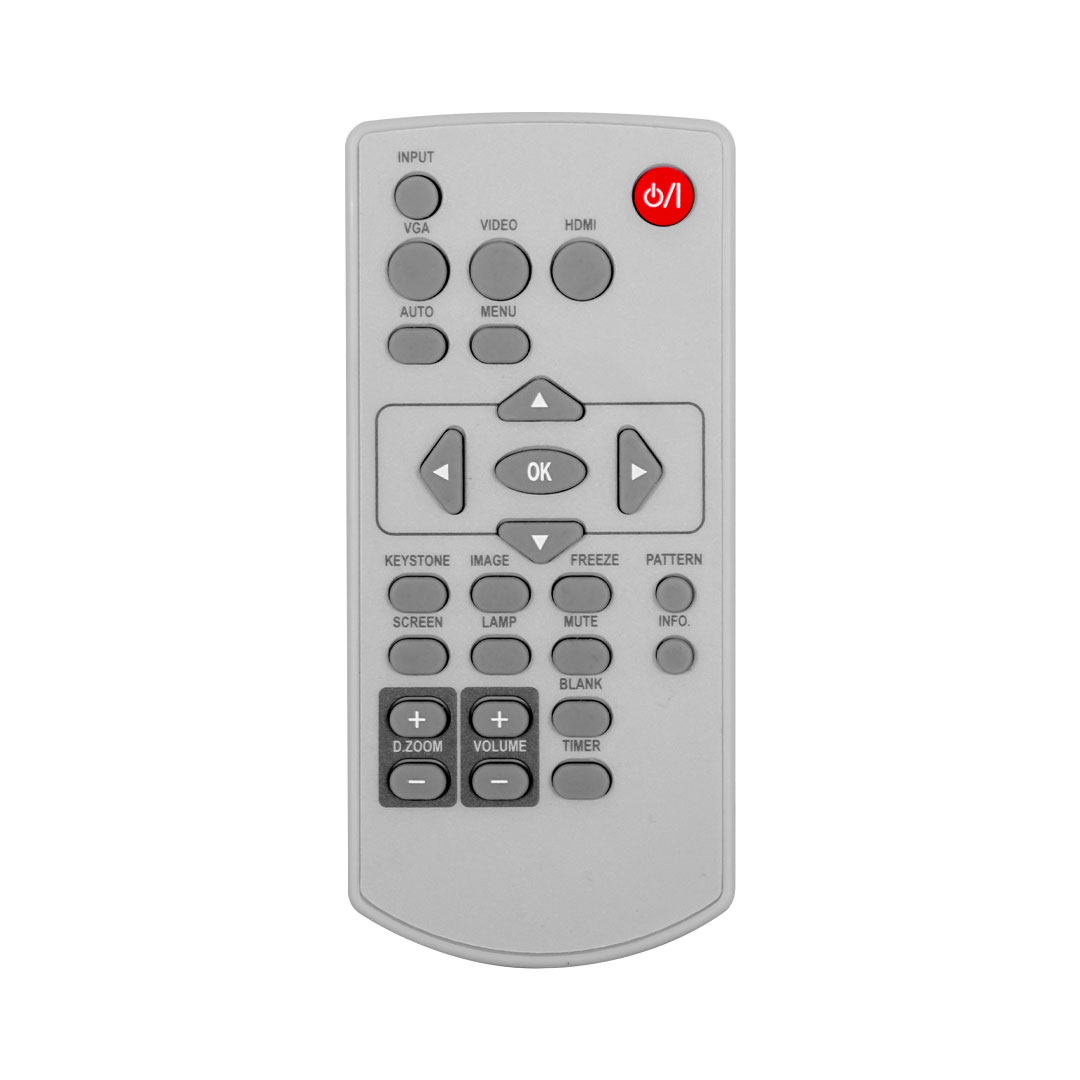

| Remote control |
| Battery: AAA ALKALINE TYPE x 2 |
| Operating Range: ±15° about 6 m or about 8m straight |
| Dimensions: 110mm(L)X50mm(W)X20mm(H) |
| Net Weight: 38g |
| Accessories |
| Owner's Manual |
| Quick Start Guide |
| Remote control and batteries |
| AC power cord (US Type x 1 / Euro Type x 1) |
| VGA cable |
